· Place of Origin: Guangzhou, China (Mainland)
· Brand Name: KINSUN
· Model Number: JS-12V/500W
· Output Power: 401 - 500W
· Output Type: Single
· Size: 160 x 100 x 54mm
· Weight: 0.75 KG
· Input Voltage: 12V/24V/48V
· Output Voltage: 220V/110V
· Type: DC/AC Inverters, DC to AC power inverter
· Output Frequency: 50Hz/60Hz
· Output Current: 1.4A
· OEM: Yes
· Certification: CE&RoHS
· Keywords: 2013 hot sale converter 600w 12v to 110v/220v 500 watt
· Output wave: Pure sine wave/Modifieds sine wave
· Color: Red
· Application: Solar system,solar energy,air conditioners
· Origin: Guangzhou
· Machine shell: Aluminium alloy
· Features: Soft start/over protection

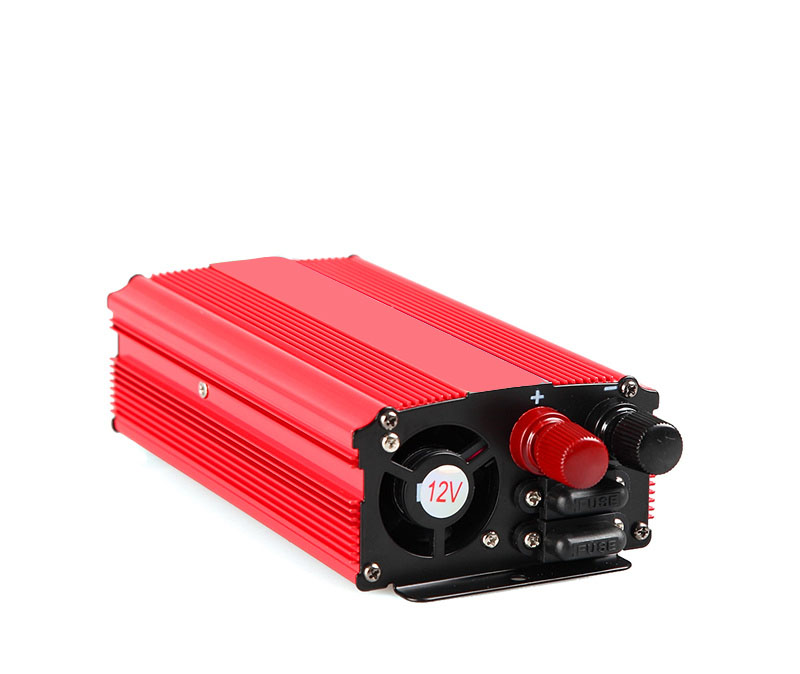

2013 hot sale converter 600w 12v to 110v/220v 500 watt
Detailed discription
Model |
JS-500W |
||
Input |
DC Voltage |
12v 24V 48v |
|
Voltage Range |
11-15v 22-30V 44-60v DC |
|
|
No Load Current Draw |
<1A |
|
|
Efficiency |
> 93% |
|
|
DC Connector |
Cables With Clips or Car Adaptor |
|
|
Output |
AC Voltage |
220V/110v 10% |
|
Continuous Power |
300W |
|
|
Surge Power |
600W |
|
|
Waveform |
Pure Sine Wave inverter |
|
|
Frequency |
50HZ or 60HZ |
|
|
THD |
<3% |
|
|
Protection |
Low Voltage Alarm |
DC11-15v/20.4-21.6Vor 44-60v |
|
Low Voltage Shut Down |
9.6V/19VDC/38VDC |
|
|
Over Load |
Shut Off Output |
|
|
Over Voltage Shut Down |
15.5VDC/31V/62V |
|
|
Over Thermal |
Shut Off Output Automatically |
|
|
Fuses |
Short Circuit |
|
|
Environment |
Working Temperature |
Between -10 and +50 |
|
Working Humidity |
10%~90%RH |
|
|
Storage Temperature |
Between -20 and +50 |
|
|
Package |
Machine Size(mm) |
160 x 100 x 54mm |
|
Packing Size(mm) |
165 x 104 x 60(mm) |
|
|
Net Weight(kg) |
0.75 KG |
|
|
Gross Weight(kg) |
1 KG |
|
|
Packing Mode |
Carton |
|
|
Other |
Start |
Soft Start |
|
Cooling Ways |
Cooling Fan |
|
Inverter Applications Showing
Can be widely used for solar energy,wind energy,ship,satcom equip,communication,water pump,
microwave oven,squeezer,air-condition,fridge,mower,soybean milk maker,etc.
Pure Sine Wave Power Inverter Features
1.High-end chip,high-performance CPU,improve the working reliability.
2.Overvoltage protection ,Low voltage protection,Over temperature protection ,Overload protection ,Short circuit protection, Reverse Polarity Protection.
3.Sound and light alarm,under-voltage alarm,with frequency-conversion cooling fan.
4.Soft-start function,increase loading capacity.
5.Aluminum alloy shell,Heat eliminable.
6. With battery clip and manual
